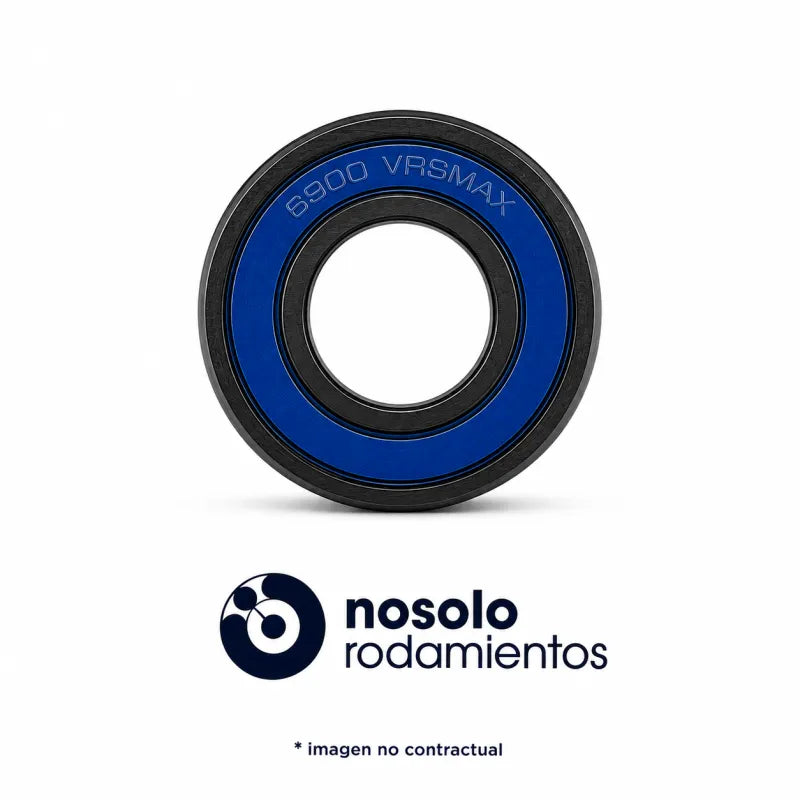

6900-VRS MAX LLU Black Oxide Pivot Bearing 10x22x6mm Black

6900 VRS MAX LLU BLACK OXIDE SUSPENSION PIVOT BEARING 10x22x6MM

The 6900 VRS MAX LLU Black Oxide bearing is specifically designed for bicycle swingarms and pivot points, where bearings are subjected to high radial, lateral and multidirectional loads.

Its MAX construction uses the maximum possible number of balls inside the bearing, eliminating the conventional cage. This design increases its load capacity compared to a standard radial bearing, making it particularly suitable for MTB suspension systems and linkage joints.

The double-lip LLU seals provide excellent protection against water, mud, dust and dirt, helping to retain internal lubrication and extend bearing service life under demanding conditions. The Black Oxide finish gives a uniform black look and adds extra corrosion protection.

Note: seal color may vary (red, blue or black).

FEATURES:

• Use: Swingarm/Pivot
• Type: Single-row MAX ball bearing
• Model: 6900 VRS MAX LLU
• Inner diameter: 10 mm
• Outer diameter: 22 mm
• Width: 6 mm
• Dimensions: 10x22x6 mm
• Technology: MAX
• Construction: Maximum number of balls
• Cage: No conventional cage
• Sealing: Double-lip LLU
• Material/Finish: Black Oxide
• Color: Black
• Protection: Water, mud, dust and dirt
• Recommended application: Swingarms and pivot joints
• Load capacity: Higher than a conventional radial bearing

Brand: TPT/JNK/BOLU/TPX
